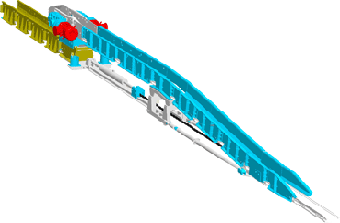

RUNNING OVER TYPE SCRAPER CONVEYER CП 250.12-48KЗ
Running-over type scraper conveyer CП 250.12-48KЗ is designed to operate as an after longwall conveyer to transport the material
during work on maintaining the gate after the longwall withdrawal (manual or mechanized cleaning the floor and other kinds of work) with
subsequent discharge onto an intermediate scraper overloading conveyers of ПТК800, ПТК1000, СП251.15; СПЦ271М and СПЦ230 types.
- Also the conveyer may be employed as an intermediate one for transportation of mineral resources from the breakage face with subsequent discharge onto the scraper overloading conveyer or a belt conveyer.
- The conveyer is equipped with the hydraulic shifting device, ensuring running over the end part of the subsequent overloading conveyer, and shifting along the gate following the longwall advance independent of the intermediate overloading conveyer.
- The conveyer may be employed in collieries of all gas and dust hazard class.
Technical Data
| Parameters |
Parameter values |
| Efficiency, t/h, not less than |
240 |
| Conveyer length, as delivered, m, not more than |
150 |
| Length of running over onto the next overloading conveyer, m, not more than |
6 |
| Total power, kW |
1(2)x55; 1(2)x75 |
| Supply voltage of electric drive motors, V |
660; 1140 |
| Hauling member speed, m/s |
0,8; 1; 1,12 |
| Conveyer hauling member: |
scraper chain |
| - quantity and layout of chain strands |
two in the pan flight guides |
| - chain gauge, mm |
18x64 |
| - the distance between chain axes, mm |
350 |
| Pan overall dimensions: |
| - pan flight height across side members, mm |
190 |
| - pan flight length across side members, mm |
1500; 1900 |
| - pan width across side members, in light mm |
460 |
Complete composition of the conveyer and design of individual assembly units can be specified when placing the order.
