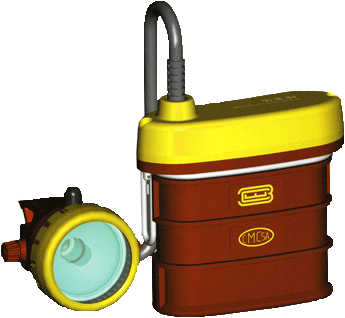

Methane signaling device СМС 5A
Methane signaling device СМС5A has much more decreased dimensions and weight comparing to Methane signaling devices CMC5, CMC4, CMC7.
- Equipped with new digital controller, which enable to minimize the time of preparing to the exploitation.
- In the lamp is used sealed Nickel-Metal-Hydrogen rechargeable battery with capacity 13 Ah.
- Special block signalizes about the discharging of the battery and doesn't allow deep discharge of rechargeable battery.
- Adjustment of the СМС5A is making automatically through the charging contact of the headlight by means of the module of in-process measurement (module of technological control) MTC.
Technical characteristics
Parameter name |
Parameter value |
| Explosion protection performance |
РВ1ВИb |
| Light flux, (Lm), not less than |
30 |
| Duration of continuous glowing, (h), not less than |
10 |
| Nominal voltage, V |
3.6 |
Range of regulation of the operation threshold (% of inclusion volume fraction of CH):
- first operation threshold of signaling device
- second operation threshold is higher than first for 0.5% of
inclusion volume fraction
|
1-2 |
Lamp flickering frequency of signaling device, Hz
- first operation threshold
- second operation threshold
|
1±20%
10±20%
|
| Time of response of the signaling device, (sec), not less than |
8 |
| Current of spark-protection response, (A), not less than |
5 |
| Time of power cut of damaged circuit, (sec), not less than |
0.5 |
| Cut off voltage of controller when discharged battery with giving I out of warning signal (lamp damping), V |
3.2±0,1 |
Dimensions, (mm), not less than:
- case
- headlight
|
138х138х50
Ø80x84
|
| Weight, (kg), not more than |
1.5 |
| Warranty period, (months) |
12 |
Certificate № UA2.003.969 as per ДСТУ ISO 9001 | |
