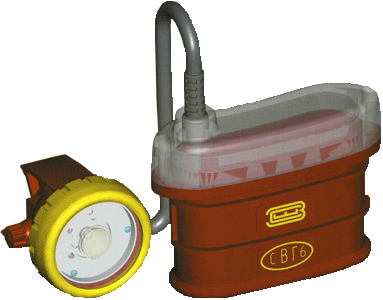

Miner cap lamp СВГ 6
Especially explosion-resistant mining head lamp СВГ6 is applied for individual illumination of work place in the mine roadways of any category of gas- and dust-danger.
The lamp has significant innovations: the light source is ultra bright light emitting diode (LED) of new generation (GLED - main LED, ALED -reserve LED), power source is small-size rechargeable battery (D-size Ni-Mg, Ni-Cd), which helped to reduce the dimensions of the lamp. The lamp case is made of high-strength plastic. The lamp can be charged from any power supply with constant voltage 4,4...6,0 V and output current from 0,1-0,2C.
Dimensions and power intensity of the rechargeable battery allow to combine the lamp with methane indicator, tracking- and under-obstruction-searching devices.
Advantages of the lamp.
- Operating life of LED 50 000 h.
- Insensibility to the blows and vibrations.
- Light flux color is white and is invariable during the discharging of the battery.
- Low heat generation, LED does not require reflector, because to get focused light ray was the collimator lens applied.
Technical characteristics
Parameter name |
Parameter value |
| Explosion protection performance |
РО Иа С |
| Nominal voltage of rechargeable battery |
3.6 V |
| Rechargeable battery |
Ni-Mg9 Ah |
Ni-Cd 6 Ah |
| Operating life of rechargeable battery |
600 cycles |
| Light source : |
Main GLED-1 W |
Reserve ALED-250 mW |
| Light flux, not less than |
GLED 40 Im |
ALED 20 Im |
| Operating life of light source |
50 000 h |
| Time of lighting: |
GLED 12 h |
ALED 70 h |
| Maximal charging time of the battery |
15 h |
| Maximal light intensity from the 1m distance |
About 1500 lux, (min. 1200 lux) |
| Angle of light dispersion limitation |
10 degree |
| Protection range |
IP 65 |
| Operating temperature range |
0°...+ 40°С |
| Lamp dimensions |
138x95x50 mm |
| Weight |
1.1 kg |
