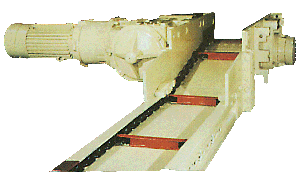

FACE FLIGHT CONVEYOR СП301M
The mining flight movable bending conveyor СП301M is intended to deliver coal of any rigidity, oil shale, potassium ores from the breakage faces at the seam thickness at least 1.35 m and angles of dip up to 35°, as well as at the rise or dip with the seams angle up to 10° in mines of any gas and dust hazard category.
- The conveyor СП301M can be used with all types of supports and cutter-loaders manufactured in Ukraine and abroad in accordance with the seam thickness.
- The conveyor drives are equipped with metal structures of the crossing devices for their fixing and moving.
Technical Specifications
Parameters |
Values of Parameters |
| Type of support |
КД90;МТ1,5; М130;МТ; М138; М144К; “Glinik”, etc |
| Type of cutter-loader |
1ГШ68; 2ГШ68Б; КШ1КГУ; РКУ13; РКУ16; ГШ500; КШЭ; МК500 etc. |
| Type of cutter-loader’s feed |
Chain; 3БСП; РКД; 2УКПК; Эйкотрак |
| Capacity, t/h |
800 |
| Length as delivered, m |
120…180 |
| Installed power, kW |
4x55; 2(3)x110; 2(3)x132; 2(3)x140; 2x160; 2x55/160 |
| Supply voltage of electric motors, V |
1140/660 |
| Traction member: |
| - number of chains |
Two, in pan side guides |
| - chain size, mm |
24x86 |
| - flight pitch, mm |
1202 |
| - distance between chain axes, mm |
600 |
| Panline: |
| - pan height on sides, mm |
245 |
| - pan length on sides, mm |
1500 |
| - pan width on sides (in light), mm |
754 |
The set of the conveyor and design of separate assembly units can be clarified during ordering.
