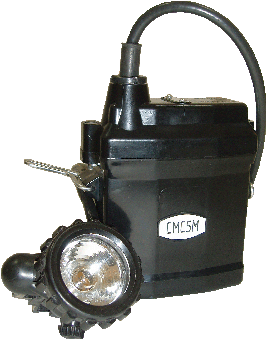

METHANE INDICATOR CMC5
The methane indicator CMC5 is intended to give the light signal at
reaching or exceeding of the two assigned thresholds of methane content in
the environment, as well as for individual illumination of the working
place in the coalmines with gas and dust hazard of any category.
- The methane indicator CMC5 is
integrated with the mining explosion-proof cap lamp.
- The monitoring and warning
about availability of methane in excess of the admissible standards, as
well as the explosion-safety of the indicator are ensured by the special
sensor, electronic devices and design of the casing parts.
Technical Specifications
Parameters |
Values of parameters |
| Explosion-safety version |
РВИbС |
| Light flux, Lm,
minimum |
30 |
| Duration of continuous operation,
h, minimum |
10 |
| Rated voltage,
V |
3,6 |
Actuation threshold adjustment
range, in percent of CH4 volumetric
fraction:
- first threshold of indicator
actuation
- second threshold is 0.5 % higher
than the first one
|
1-2 |
Indicator lamp blinking frequency,
Hz:
- first actuation
threshold
- second actuation
threshold
|
1±20%
10±20%
|
| Actuation time, s,
maximum |
8 |
| Limit of admissible basis absolute
error of indicator actuation, in percent of CH4
volumetric fraction |
±0,2 |
| Sparking protection current, A,
maximum |
6 |
| Disconnection time at circuit
failure, s, maximum |
0.5 |
| Controller disconnection voltage at
battery discharge with warning signal (dip of lamp),
V |
3,2±0,1 |
Overall dimensions, mm,
maximum:
- casing
- headligh
|
190х150х65
90х80х85
|
| Mass, kg,
maximum |
2.5 |
